Must be shipped via Freight! See our Freight Terms and Conditions HERE

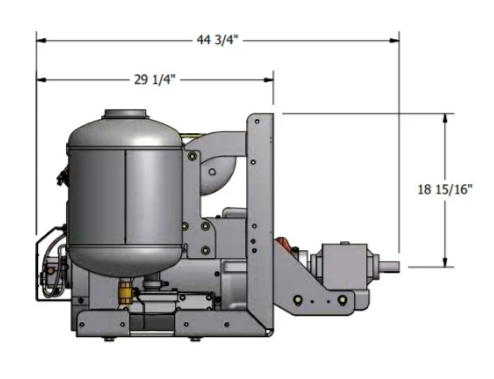

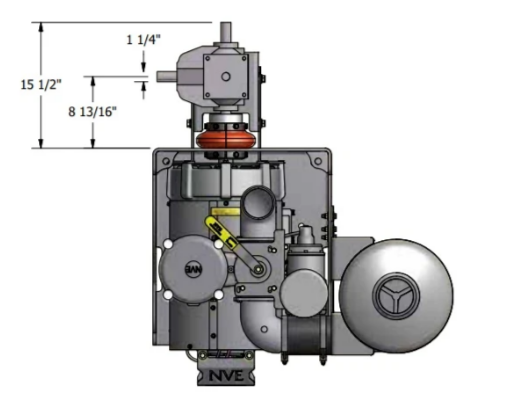

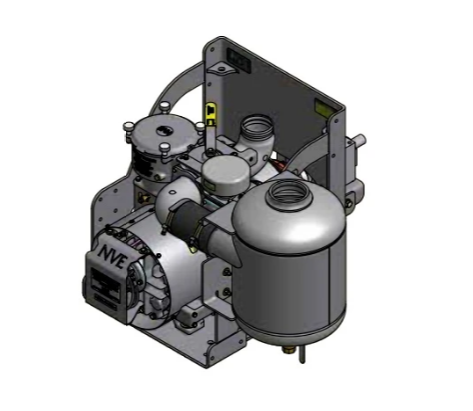

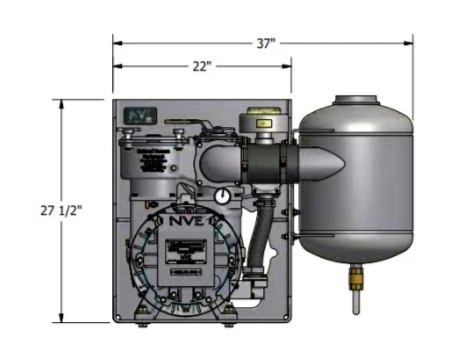

Challenger 866 Muffler Package Includes:
- • Challenger 866 vacuum pump
- • Clockwise rotation, liquid cooled
- • Rugged 3/8" construction, powder coat painted pump stand
- • 400 series 3-shaft gearbox
- • Coupler set with shear protection
- • Easy-align, adjustable gearbox bracket
- • Also available with hydraulic drive
- • 14" round oil catch muffler
- • Stainless steel mesh filter
- • All elbows, fittings, and high temp hoses are factory connected
- • Designed, built, and supported in the USA
NVE 866 Pump Specifications:
- • Ductile iron housing
- • The NVE bi-rotational, four port oil pump is exclusive to NVE's "oil management system," delivering the precise amount of oil required for any job. Easily adjustable to 5-24 ounces per hour.
- • Rugged braided steel oil delivery lines
- • Vane flush port with valve
- • Vane wear inspection port
- • Integral, easily accessible & cleanable, stainless final filter
- • Proven crash protection allowing all major components to survive a catastrophic failure
- • Multiple drive options (gearbox, belt, hydraulic, and direct)
- • Designed, built, and supported in the USA
| Specifications: |
|
| Airflow - free air |
520 CFM |
| Maximum vacuum |
(Varies by RPM, altitude, ambient temperature, and time running) |
| Maximum intermittent pressure |
20 PSI |
| Operating range - RPM |
1000 |
| HP required @ full vacuum |
25 |
| HP required @ 20 PSI |
38 |
| Porting size |
4" |
| Shaft size (3/8" key) |
1-3/4" |
View the products catalog HERE
View the parts catalog HERE
View the owners manual HERE
View the product brochure HERE
| Vacuum Pump Oil |
Pump Manufacturer |
| ISO 32 |
Masport (Winter) |
| ISO 68 |
Battioni, NVE, Masport (All Season) |
| ISO 100 |
Moro, Masport (Summer) |
| ISO 150 |
Jurop, Fruitland, NVE |
