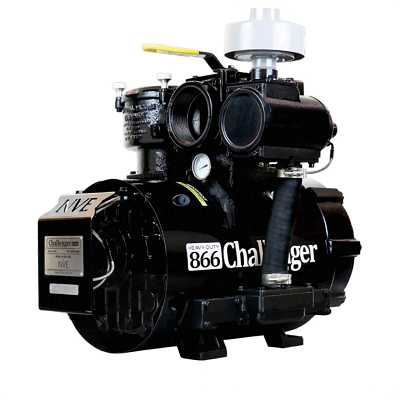

Challenger 866 Vacuum Pump

Must be shipped via Freight! See our Freight Terms and Conditions HERE

NVE 866 Pump Specifications:

• Ductile iron housing
• The NVE bi-rotational, four port oil pump is exclusive to NVE's "oil management system," delivering the precise amount of oil required for any job. Easily adjustable to 5-24 ounces per hour.
• Rugged braided steel oil delivery lines
• Vane flush port with valve
• Vane wear inspection port
• Integral, easily accessible & cleanable, stainless final filter
• Proven crash protection allowing all major components to survive a catastrophic failure
• Multiple drive options (gearbox, belt, hydraulic, and direct)
• Designed, built, and supported in the USA


Specifications:
Airflow - free air	520 CFM
Maximum vacuum	(Varies by RPM, altitude, ambient temperature, and time running)
Maximum intermittent pressure	20 PSI
Operating range - RPM	1000
HP required @ full vacuum	25
HP required @ 20 PSI	38
Porting size	4"
Shaft size (3/8" key)	1-3/4"

View the products catalog HERE

View the parts catalog HERE

View the owners manual HERE

View the product brochure HERE

Vacuum Pump Oil	Pump Manufacturer
ISO 32	Masport (Winter)
ISO 68	Battioni, NVE, Masport (All Season)
ISO 100	Moro, Masport (Summer)
ISO 150	Jurop, Fruitland, NVE
